Wall-mounted extractor hood AD1189XStainless steel+glas

- Decorative glass
The combination of metal and glass creates harmonious elegance with other built-in product ranges.

- Standard carbon filter
The filter provides an effective air purification in recycling mode.

- Halogen lighting
It provides a natural and powerful light which is evenly dispensed over the cooking surface.

Main Specifications
Type of hoods:
Wall decorative hood
Output air extraction (m3/h):
800
Width (cm):
90
Control panel
Type of control:
Electronic
Boost position:
Without
Lighting
Number of lights:
2
Light position:
Under;Right;Left
Type of bulb:
Halogen
Lighting power (W):
20
Performance
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
58
Max recycling air extraction (m3/h):
600
Minimum evacuation sound level (dBA):
61
Max evacuation sound level (dBA):
71
Filtering
Référence du kit de recyclage:
AFC-62
Number of filters:
2
No-return airflow clap:
Yes
Accessories:
Characoal filter
Dimensions
Height of product without chimmey (mm):
65

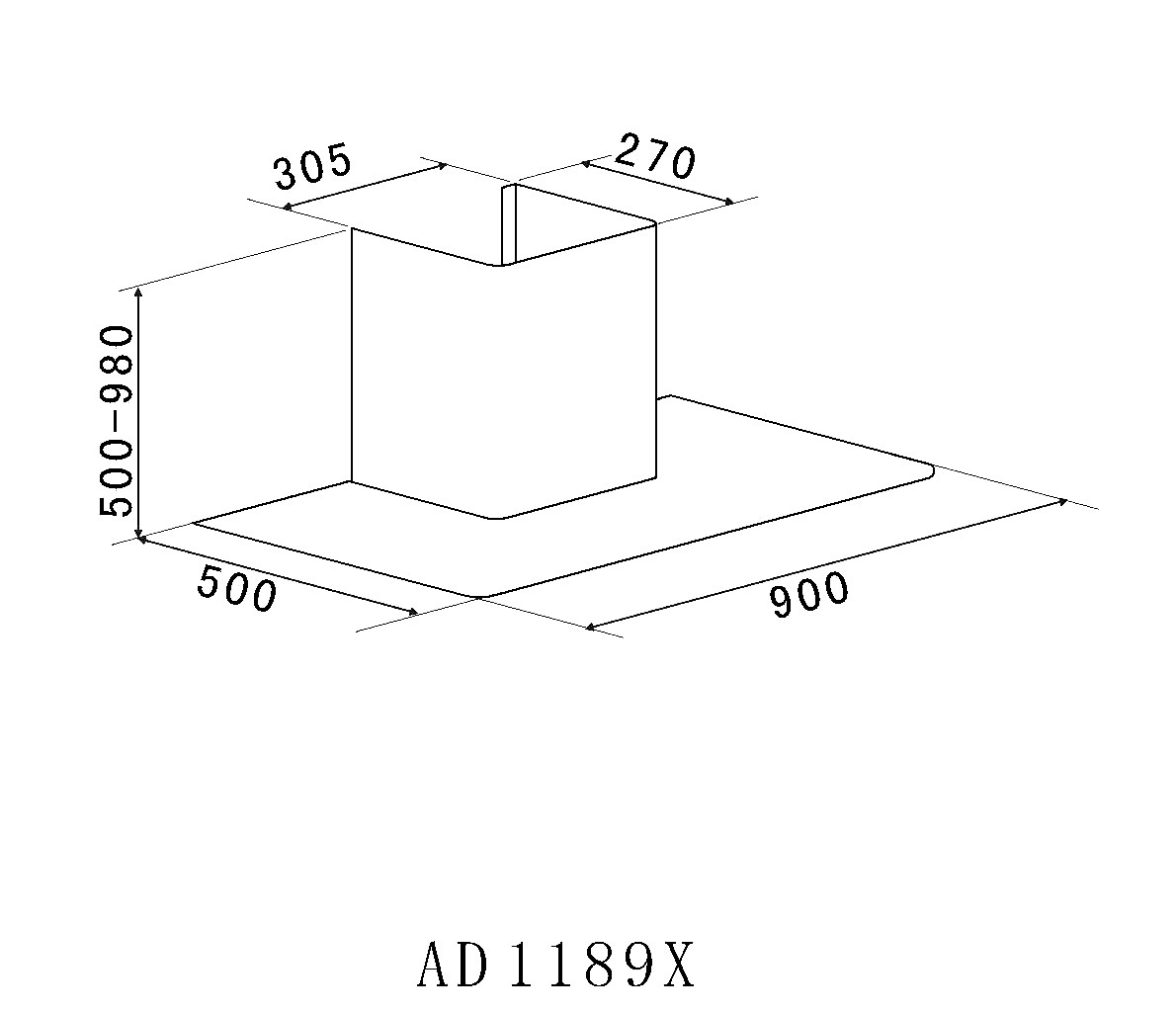

Dimensions of product HxWxD (mm) :
900X65X500
Height of chimmey min/max (mm):
500 / 980
Dimensions of the packed product HxWxD (mm):
455X955X570
Gross weight (kg):
23,52
Net weight (kg):
19.5
Connections
Voltage (V):
220-240
Frequency (Hz):
50
Current (A):
10
Connection rating (W):
370W
